MTX-R SIDEMOUNT SET - Dive regulator
£1760,00
MTX-R SIDEMOUNT SET - Dive regulator
£1760,00
The MTX-R sidemount set is a super tough, rugged, high performance, go anywhere sidemount regulator configuration designed to meet the rigours of cold water and extreme sidemount diving. The MTX-R is highly reliable and also very easy to service out in the field which make it an ideal choice for the expedition and exploration diver.
First Stage
- Available in yoke or DIN configuration.
- Suitable for cold water use (below 10°C / 50°F)
- Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in thehose to increase at a faster rate than ambient. This results in superior performance at depth.
- Over-moulded innovative endcap and environmental diaphragm, a forged1st stage body offering maximum thermal performance.
- The 5th 3/8” UNF medium pressure port includes a protective bumper when not in use.
- Forged first stage body with heat exchanging ribs for maximum thermal performance.
- Angled HP ports for optimal hose routing and fitting of transmitters.
- Forged rotating turret with medium pressure ports in a parallel direction for improved hose orientation.
- Ribbed diaphragm clamp for improved heat exchange in cold waterconditions.
- Double swivel hose for greater freedom of movement and comfort.
- Tested for Octopus use - EN250A cold water.
- Nitrox/Oxygen compatible – Up to 40% O² outside the EU (European Union), within the EU anything above 21% O² must use an M26 Connection.
Item n°:
RP111111
FEATURES & BENEFITS
The MTX-R has excellent cold water performance and has a greatly reduced risk of free flow. This has been achieved by improving several areas, including an innovative endcap and environmental diaphragm, a forged 1st stage body offering maximum thermal preference, a ribbed diaphragm clamp and a redesigned & enlarged heat exchanger on the 2nd stage with metal incorporated into the front cover design. See product features

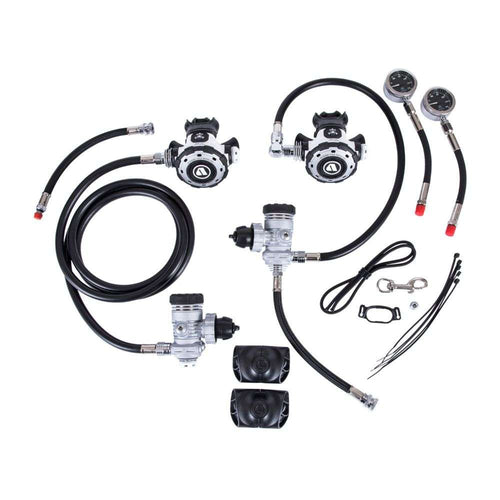

WHAT’S IN THE BOX
- 1 DPT DIN 1st stages with 5 port swivel turrets
- 2 x MTX-R second stages
- 210cm double swivel hose
- 61cm double swivel hose
- 2 x 25cm length MP inflation hoses (one for buoyancy system, one for drysuit)
- 2 x TEK pressure gauges with 18cm hoses
- 1 x 90° elbow fitting
- 1 x bungee necklace
- 1 x bungee clip
- 1 x stainless steel bolt snap
- 2 sets of short exhaust ports
- Regulator bag
- Setup illustration, CD manual and quick start guide
- NOW INCLUDES THE NEW BUNGEE CONNECTOR SYSTEM
FEATURES
First Stage
- Available in yoke or DIN configuration.
- Suitable for cold water use (below 10°C / 50°F)
- Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in thehose to increase at a faster rate than ambient. This results in superior performance at depth.
- Over-moulded innovative endcap and environmental diaphragm, a forged1st stage body offering maximum thermal performance.
- The 5th 3/8” UNF medium pressure port includes a protective bumper when not in use.
- Forged first stage body with heat exchanging ribs for maximum thermal performance.
- Angled HP ports for optimal hose routing and fitting of transmitters.
- Forged rotating turret with medium pressure ports in a parallel direction for improved hose orientation.
- Ribbed diaphragm clamp for improved heat exchange in cold waterconditions.
- Double swivel hose for greater freedom of movement and comfort.
- Tested for Octopus use - EN250A cold water.
- Nitrox/Oxygen compatible – Up to 40% O² outside the EU (European Union), within the EU anything above 21% O² must use an M26 Connection.
ADDITIONAL DETAILS
Second Stage
- High performance, pneumatically balanced, lever operated poppet valve.
- Large, diver friendly self-flushing controllable purge button.
- Front cover with over-moulded elastomer incorporates a formed chromeplated brass plate improving durability of the second stage.
- Large protective elastomer bumpers on the side and on the top to protectthe second stage from impacts and scratches in the most vulnerable places.
- Reversible second stage for either a left or right hand gas supply configuration.
- A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water.
- Comfo-bite mouthpiece
- Double swivel hose
- Flexible nylon braided hose has better cold water performance than traditional rubber hose.
