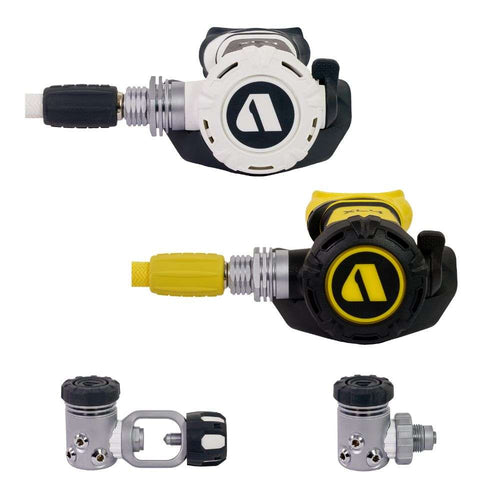

XL4+ STAGE 3 - Dive Regulator + Octopus
£704.00
XL4+ STAGE 3 - Dive Regulator + Octopus
£704.00
The Apeks XL4+ is a compact lightweight regulator suitable for diving in all environments including cold water locations. Its design and low weight help reduce jaw fatigue on long dives. The XL4+ also makes an ideal stage regulator, perfect for the exploration diver with a large amount of equipment. The XL4+ regulator is a high-performance option for those divers serious about weight savings.
First Stage
- Compact machined first stage based on the expedition tested Apeks DS4 platform.
- Break through, innovative over-moulded first-stage endcap and environmental diaphragm helps prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first stage from impact damage.
- Large surface area heat exchanger diaphragm clamp helps increase the gas temperature inside the first stage, resulting in improved cold water performance.
- Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.
- With 2 HP ports and 4MP ports.
Item n°:
RQ117120
Product Details
See product features
FEATURES
First Stage
- Compact machined first stage based on the expedition tested Apeks DS4 platform.
- Break through, innovative over-moulded first-stage endcap and environmental diaphragm helps prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first stage from impact damage.
- Large surface area heat exchanger diaphragm clamp helps increase the gas temperature inside the first stage, resulting in improved cold water performance.
- Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.
- With 2 HP ports and 4MP ports.
ADDITIONAL DETAILS
Second Stage
- Compact and lightweight second stage improves comfort and helps reduce jaw fatigue on long duration dives.
- Large heat exhanger to improve cold water preformance and freezing resistance. High performance pneumatically balanced lever operated poppet valve.
- Large, over moulded self-flushing and controllable purge button.
- Ergonomic Venturi lever is easy to use and locate. Flexible nylon braided hose has better cold water performance than a traditional rubber hose.
- Standard metallic hose connection for interchangeability.
- Comfo-bite mouthpiece has a unique bridge that fits across the upper palate and does not require bite pressure to stay in place.
- Re-useable mouthpiece clip makes it simple to change mouthpieces in the field.
- Durable and flexible rubber exhaust tee provides excellent bubble diversion.
- UV inhibitors to help prevent discolouration of the white materials.
SPECS
Connections | Yoke and DIN available |
Type of first stage | Over-balanced diaphragm design, environmentally sealed |
Body Type | One piece machined body |
Number of HP ports | 2 (7/16" UNF) |
Number of MP ports | 4 (3/8" UNF) |
Weight | DIN – 905g (2 lb) Yoke – 1041g (2.3 lb) |
Environmental Dry Kit | Standard |
First stage exterior | Satin |
Cold water use | Yes |
Type of second stage | Pneumatically balanced |
Opening Effort Control Knob | No |
Integrated Venturi Lever | Yes |
Mouthpiece | Comfo-bite™ |
Exhaust tee | Standard, one set |
Heat Exchanger for freezing resistance | Yes |
Hose type | Braided Flexi-hose |
Overall work of breathing (WOB) scores | Avg. 0.90 joules/liter |
